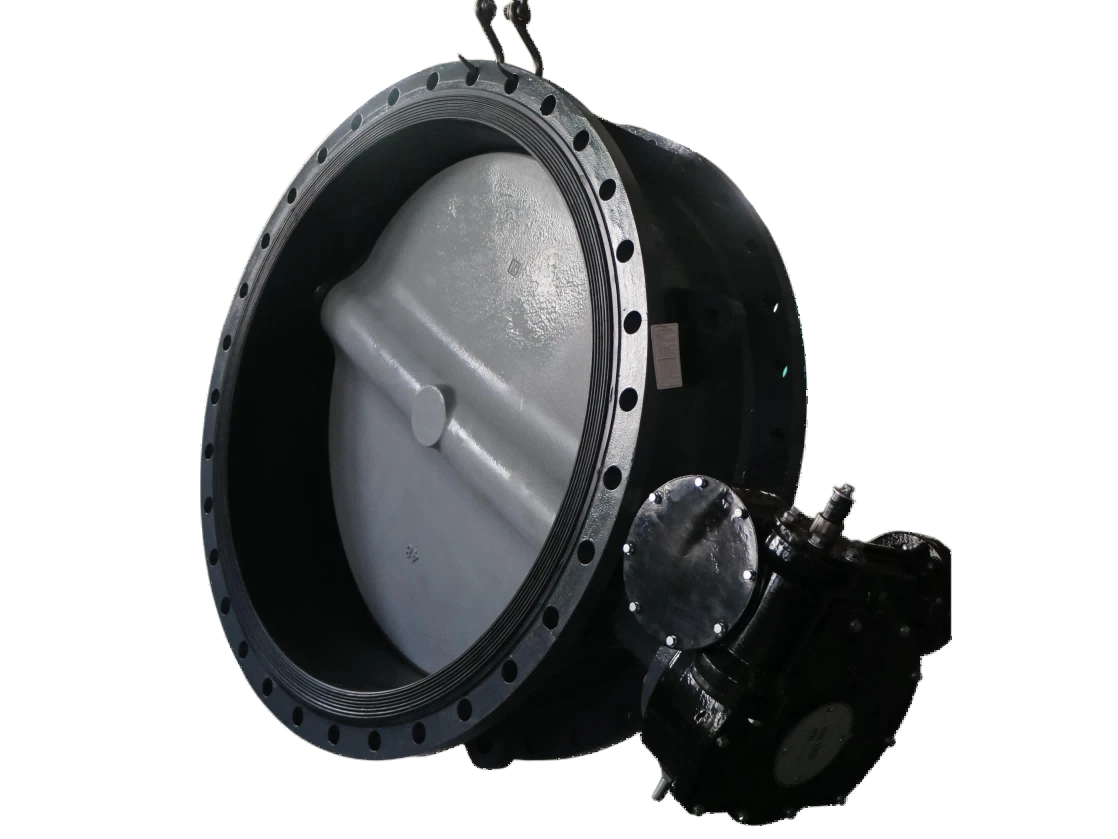

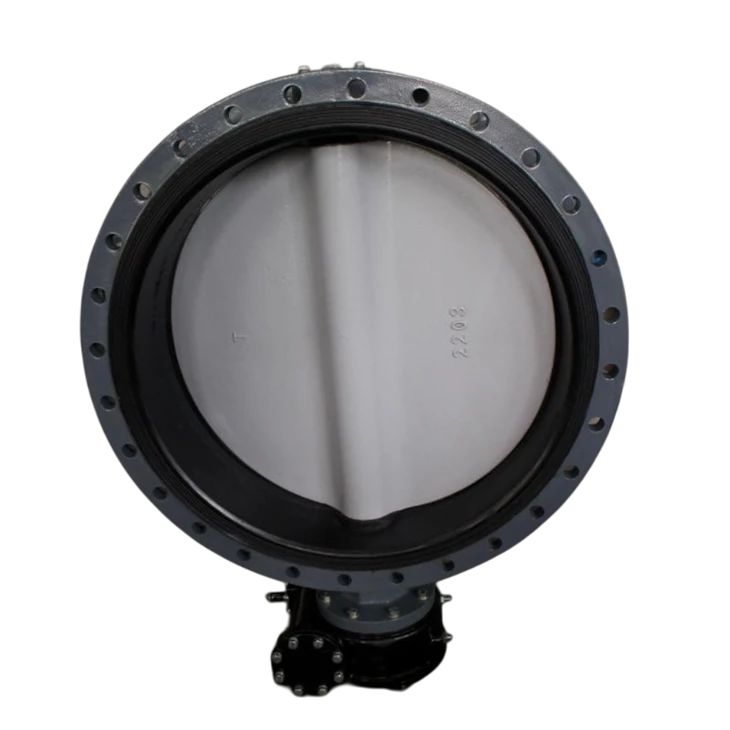

Nylon Coated Disc Butterfly Valve

The valve body is made of high-quality WCB cast steel, which has certain toughness and can withstand high pressure. Under the working condition of 80℃, this cast steel nylon plate turbine flange butterfly valve can also output very stably, suitable for various medium temperature working conditions. Don't worry about being easily bumped or damaged during transportation.

The valve plate is made of high-strength nylon material, which has a much lower density than stainless steel. Compared with metal valve plates, it is lighter in weight and the valve opens and closes more smoothly. Nylon valve plates have good corrosion resistance to media such as water, oil, and neutral salt solutions, but are not resistant to strong acids.

ne propylene rubber lining will not age due to high temperature.

The biggest characteristic of nylon board is that it is afraid of high temperature, and the working environment cannot exceed 80℃to avoid softening and deformation caused by high temperature. Avoid using strong acid and alkali cleaning agents during daily cleaning.

The biggest characteristic of nylon board is that it is afraid of high temperature, and the working environment cannot exceed 80℃to avoid softening and deformation caused by high temperature. Avoid using strong acid and alkali cleaning agents during daily cleaning.

The opening and closing of valves rely on turbine transmission, and the lubricating oil level should be checked in a timely manner. If it is insufficient, it should be replenished in a timely manner. If there is any abnormal noise during rotation, there may be impurities inside. Clean or replace the components in a timely manner. In order to ensure consistent transmission of each valve during batch installation, it is recommended to conduct a no-load test on the turbine drive before installation.
