TIANJIN XTD VALVE CO., LTD. is a professional manufacturer of various valves, including butterfly valves, gate valves, filters, ball valves, globe valves, and more.

Unlike ordinary valve manufacturers, XTD VALVE owns its own rubber factory and valve stem processing facility, allowing for greater control over quality and production efficiency.

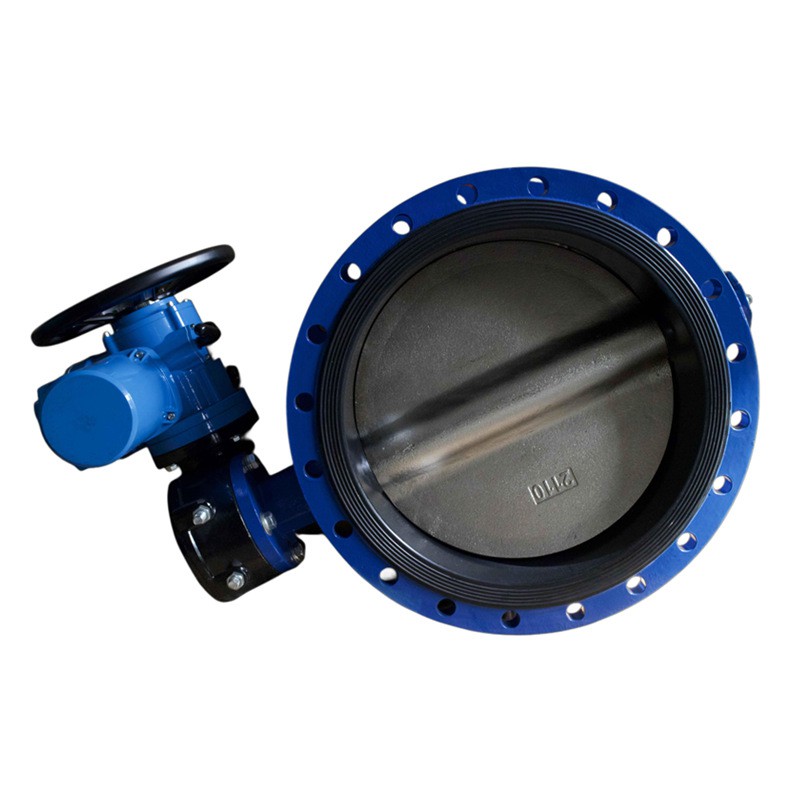

Ductile Iron Electric Flanged Butterfly Valve
The ductile iron electric flanged butterfly valve combines a high-strength ductile iron body with electric actuator and flanged connection, designed for industrial fluid control systems. The ISO 5211
Wafer Style Valve
The ductile iron wafer type butterfly valve is made of high-strength ductile iron, offering excellent pressure resistance and corrosion resistance, making it suitable for various industrial
Fire Safe Double Offset Butterfly Valve
The fire safe double offset butterfly valve is a quarter-turn valve engineered for high-performance pipeline isolation and flow control in oil and gas, refining, petrochemical, chemical, and process
Stainless Steel Double Offset Flanged Butterfly Valve
The stainless steel double offset flanged butterfly valve (also known as a double eccentric butterfly valve) is a high-performance, quarter-turn valve engineered for reliable isolation and flow
Soft Seated Double Offset Butterfly Valve
The soft seated double offset butterfly valve is a quarter-turn isolation valve designed for water treatment, wastewater, HVAC, industrial utilities, chemical processing, and marine applications
API 609 High Performance Double Eccentric Butterfly Valve
The API 609 high performance double eccentric butterfly valve is a quarter-turn industrial valve designed for critical pipeline isolation and flow control. Featuring a double-offset shaft and disc
Double Offset Lug Type Butterfly Valve
The double offset lug type butterfly Valve is a quarter-turn high-performance valve engineered for reliable pipeline isolation and precise flow control in demanding industrial systems. Its
High Performance Double Offset Wafer Butterfly Valve
The high performance double offset wafer butterfly valve is a heavy-duty quarter-turn industrial valve engineered for precise process isolation and selected flow control duties. Built with a
Cast Steel Wafer Butterfly Valve
The valve body is made of cast steel material, which can withstand a working pressure of 1.6MPa and is suitable for use in high-pressure and medium temperature scenarios such as chemical, printing
Worm Gear Operated Flanged Butterfly Valve
This turbine butterfly valve has a white valve body, and its color design is not only for aesthetics, but also for practicality. In dense industrial pipelines, white valve bodies are more effective
Electric Wafer Butterfly Valve - Motorized & Reliable
This electric butterfly valve is equipped with a multi turn electric actuator, which controls the opening and closing of the valve through multi turn rotation driven by a motor. Compared with
Butterfly Valve With Pneumatic Actuator And Positioner
Ordinary pneumatic butterfly valves rely on actuator pressure regulation, but this butterfly valve with YT-1000RDI locator is suitable for precise flow control scenarios through 4-20mA DC signal

First 12 3 4 5 6 7 Last

Why choose us

Our Certificates
Our products have passed ISO 9001 certification. We have also been recognized as a high-tech enterprise, received an AAA credit rating certificate, and hold multiple patents.

Production & Market
Since its establishment, TIANJIN XTD VALVE CO., LTD. has gained strong domestic sales due to its excellent quality and solid reputation.While maintaining a firm foothold in the domestic market, the company actively explores international markets by participating in global exhibitions, showcasing product advantages, and establishing relationships with customers worldwide. Our products are exported to multiple countries and regions, including Indonesia and other international destinations.

Our Services
From CAD drawings to delivery – We provide seamless service:
● 1-on-1 Engineering Support with over 30 years of expertise
● 15-Day Fast Delivery for standard valves
● Custom Solutions at no additional cost

Stainless Steel Wafer Butterfly Valve

Size	2”~40”
Pressure Rating	PN10, PN16, CL150, JIS 5K/10K
Material	SS304, SS316
Design Standard	EN 593, MSS SP67, API 609, BS5155
Inspection Standard	API 598, ISO 5208, EN 12266
Application medium	Water, oil and gas

Product Introduction

A stainless steel butterfly valve is a type of valve that is made of stainless steel and consists of a circular disc or vane that is mounted on a shaft. The disc can be rotated to control the flow of fluid or gas through the valve. The valve is called a butterfly valve because the shape of the disc resembles the wings of a butterfly.

Stainless steel butterfly valves are commonly used in industries such as food and beverage, pharmaceutical, and chemical processing, where high levels of hygiene and corrosion resistance are required. Stainless steel is an ideal material for these applications because it is resistant to corrosion and can withstand high temperatures and pressures.

Stainless steel butterfly valves can be operated manually, electrically, or pneumatically, depending on the application. They are known for their quick response times, low pressure drop, and ease of installation and maintenance, which makes them a popular choice for many industries.

productcate-1389-574

Nominal diameter DN		Size (mm)														Weight (kg)
Nominal diameter DN		A	B	C	D	L	H	D₁	N-Ø	K	E	n₁-Ø₁	Ø₂	G	D₂-M	Weight (kg)
(MM)	(Inch)	D7_A1/37_A1/67_A1/97_A1X-1.0/1.6
50	2"	161	80	42	52.9	32	84.84	120	4-23	77	57.15	4-6.7	12.6	118	-	2.5
65	2.5"	175	89	44.7	64.5	32	96.2	136.2	4-26.5	77	57.15	4-6.7	12.6	137	-	3.2
80	3"	181	95	45.2	78.8	32	61.23	160	8-18	77	57.15	4-6.7	12.6	143	-	3.6
100	4"	200	114	52.1	104	32	70.8	185	4-24.5	92	69.85	4-10.3	15.77	156	-	4.9
125	5"	213	127	54.4	123.3	32	82.28	215	4-23	92	69.85	4-10.3	18.92	190	-	7
150	6"	226	139	55.8	155.6	32	91.08	238	4-25	92	69.85	4-10.3	18.92	212	-	7.8
200	8"	260	175	60.6	202.5	45	112.89/76.35	295	4-25/4-23	115	88.9	4-14.3	22.1	268	-	13.2
250	10"	292	203	65.6	250.5	45	92.4	357	4-29	115	88.9	4-14.3	28.45	325	-	19.2
300	12"	337	242	76.9	301.6	45	105.34	407	4-29	140	107.95	4-14.3	31.6	403	-	32.5
350	14"	368	267	76.5	333.3	45	91.11	467	4-30	140	107.95	4-14.3	31.6	436	-	41.3
400	16"	400	309	86.5	389.6	51.2/72	100.47/102.42	515/525	4-26/4-30	197	158.75	4-20.6	33.15	488	-	61
450	18"	422	328	105.6	440.51	51.2/72	88.39/91.51	565/585	4-26/4-30	197	158.75	4-20.6	38	539	-	79
500	20"	480	361	131.8	491.6	64.2/82	96.99/101.68	620/650	4-26/4-33	197	158.75	4-20.6	41.15	539	-	128
600	24"	562	459	152	592.5	70.2/82	113.42/120.46	725/770	4-30/4-36	276	215.9	4-22.2	50.65	816	-	188
700	28"	624	520	163	695	66/82	109.65	840	20-30/24-36	300	254	8-18.0	55/63.35	895	4-M33	284
800	32"	672	591	188	794.7	66/82	124	950	24-33/24-39	300	254	8-18.0	55/63.35	1015	-	368
900	36"	720	656	203	864.7	118	117.57	1050	28-33	300	254	8-18.0	75	1115	4-M30	713
1000	40"	800	721	216	965	142	129.89	1160	28-36	300	254	8-18.0	85	1230	4-M33	864
1200	48"	900	780	254	1020	180	141.33	1340	32-39	300	254	8-18.0	95	1450	4-M36	1130

Basic Information

Model NO.	D71X / D371X / D671X / D971X	Connection Form	Wafer
Structure	Centre Sealing	Seal Form	Force Sealed
Valve Stem	Normal	Work Pressure	0.6MPa / 1.0MPa / 1.6MPa / 2.5MPa / Class150
Working Temperature	Normal Temperature (-40°C < T < 120°C)	Material of Seal Surface	Soft Sealed / Hard Sealed
Valve Body	Casting	Standard	API 609
Application	Industrial Usage, Water Industrial Usage, Household Usage	Seated Material	EPDM, NBR, PTFE, FKM
Certification	ISO9001	Flow Resistance	Low Resistance
Transport Package	Export Wooden Crate	Specification	DN25 - DN1600
Origin	China	HS Code	8481804090
Production Capacity	50,000 pieces/Year

Technical Parameters

Size	DN32-DN600	DN650-DN2000
Working pressure	16Bar	10Bar
Shell	24Bar	15Bar
Seal	18Bar	11Bar
Operating Temperature	-45°C~+150°C
Operating Environment	Ballast and bilge system Chemical processing Desalination plants Drilling rigs Drinking water Dry powder Food and beverage Gas plants HAVC Mining industry Paper industry Sand handling Seawater Sugar industry Thermo technical water treatment Waste water
Driving Method	Hand Lever Worm Gear Electric Pneumatic

Advantages of stainless steel butterfly valve!

01/

Corrosion resistance
Stainless steel is highly resistant to corrosion, making it ideal for use in harsh environments where other materials may corrode or degrade.

02/

Hygiene
Stainless steel is easy to clean and sanitize, making it suitable for applications in the food and beverage, pharmaceutical, and other industries where

03/

Durability
Stainless steel is a strong and durable material that can withstand high temperatures and pressures, making it suitable for use in a wide range applications.

04/

Quick response time
Butterfly valves can be operated very quickly, which makes them suitable for applications where rapid response is required.

05/

Easy to install and maintain
Butterfly valves are relatively easy to install and maintain, which can help to reduce downtime and maintenance costs.

06/

Versatility
Stainless steel butterfly valves are available in a range of sizes and can be used for a variety of applications, from small-scale residential plumbing to

A stainless butterfly valve has four key parts

Disc

The part that spins to control flow.

Body

The outer shell holding all the parts together. Epoxy Coated

Stem

The rod that connects the disc to the actuator.

Seat

The part that seals the valve to stop leaks.

Features

● Stainless steel wafer butterfly valves are suitable for various corrosive chemical media such as acids, alkalis, and salts. They offer excellent corrosion resistance.
● They are also ideal for applications with high hygiene requirements, such as in the pharmaceutical, food, and other related industries.
● Butterfly valves are especially suitable for pipelines transporting slurry or mud, with minimal liquid accumulation at the pipe mouth. They offer good sealing and flow control performance even at low pressure.
● These valves feature a simple structure, compact size, short face-to-face length, small volume, and light weight, making them well-suited for large-diameter designs.
● Suitable for installation in pipelines with limited space, they also offer low operating torque, making them labor-saving and easy to operate.

Ductile Iron Electric Flanged Butterfly Valve

Wafer Type Butterfly Valves Application

Feedwater

Chemical feed and extraction drain systems

Turbine seals and drains

Boiler vents and drains

Main steam vents and drains

Turbine lube oil system and others
