Precautions For Use

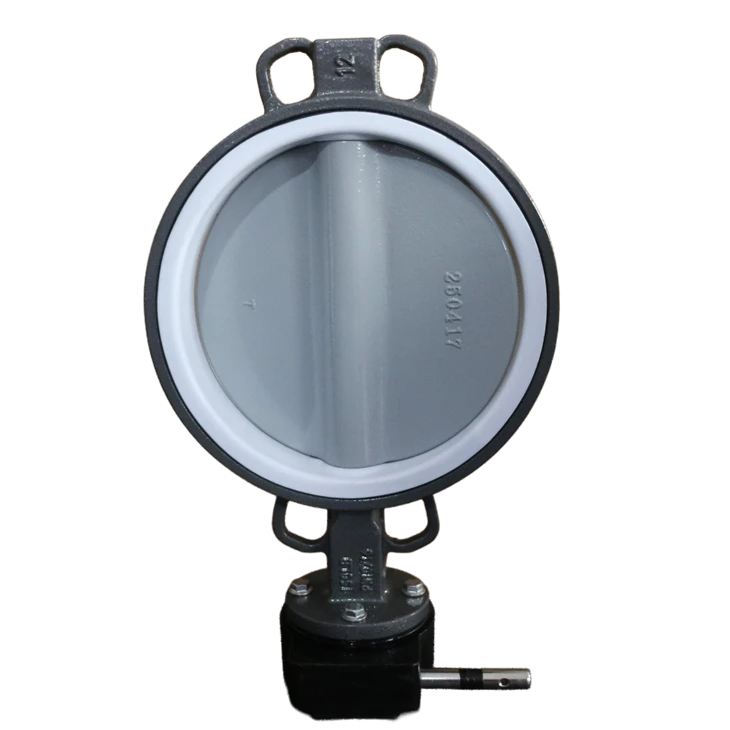

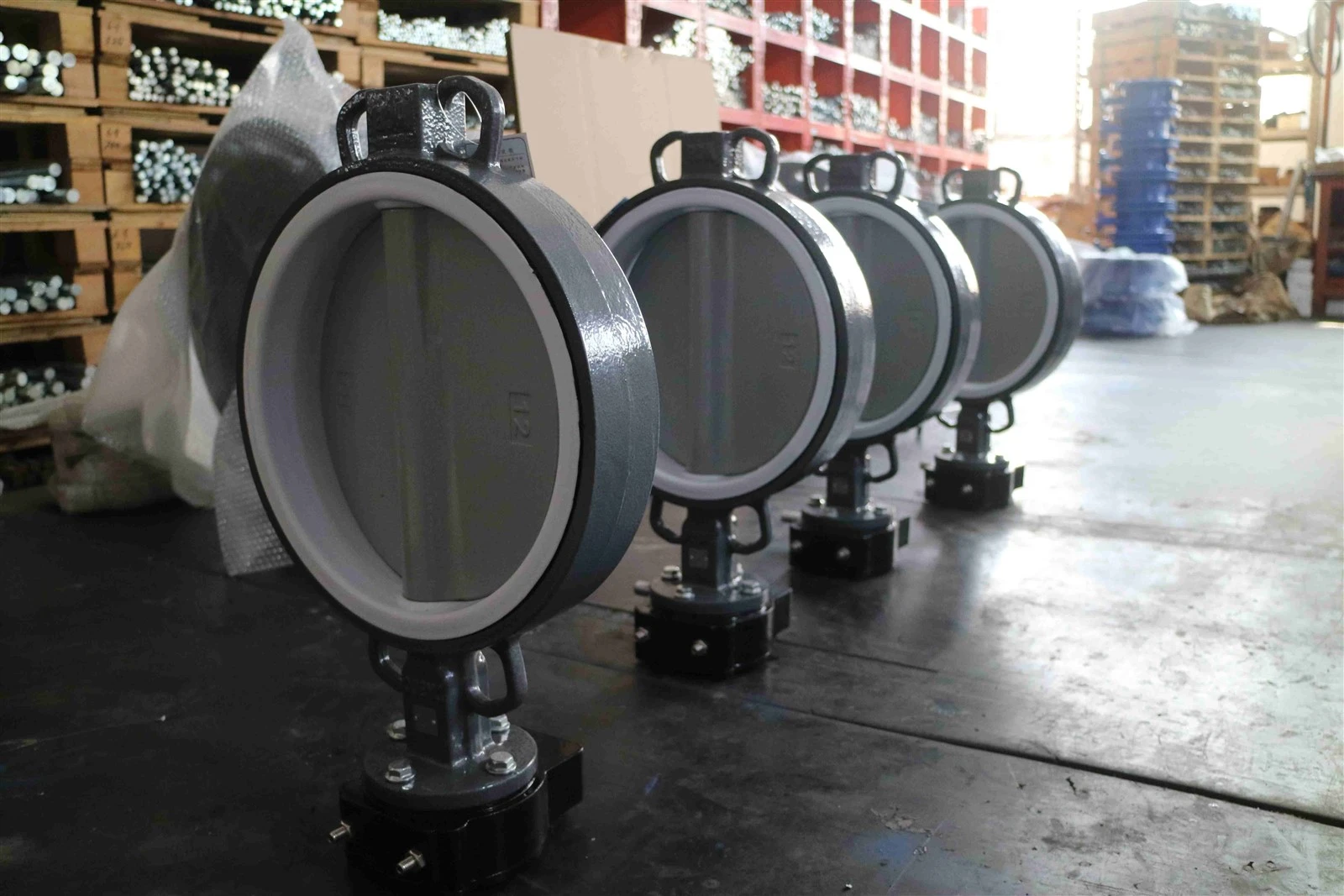

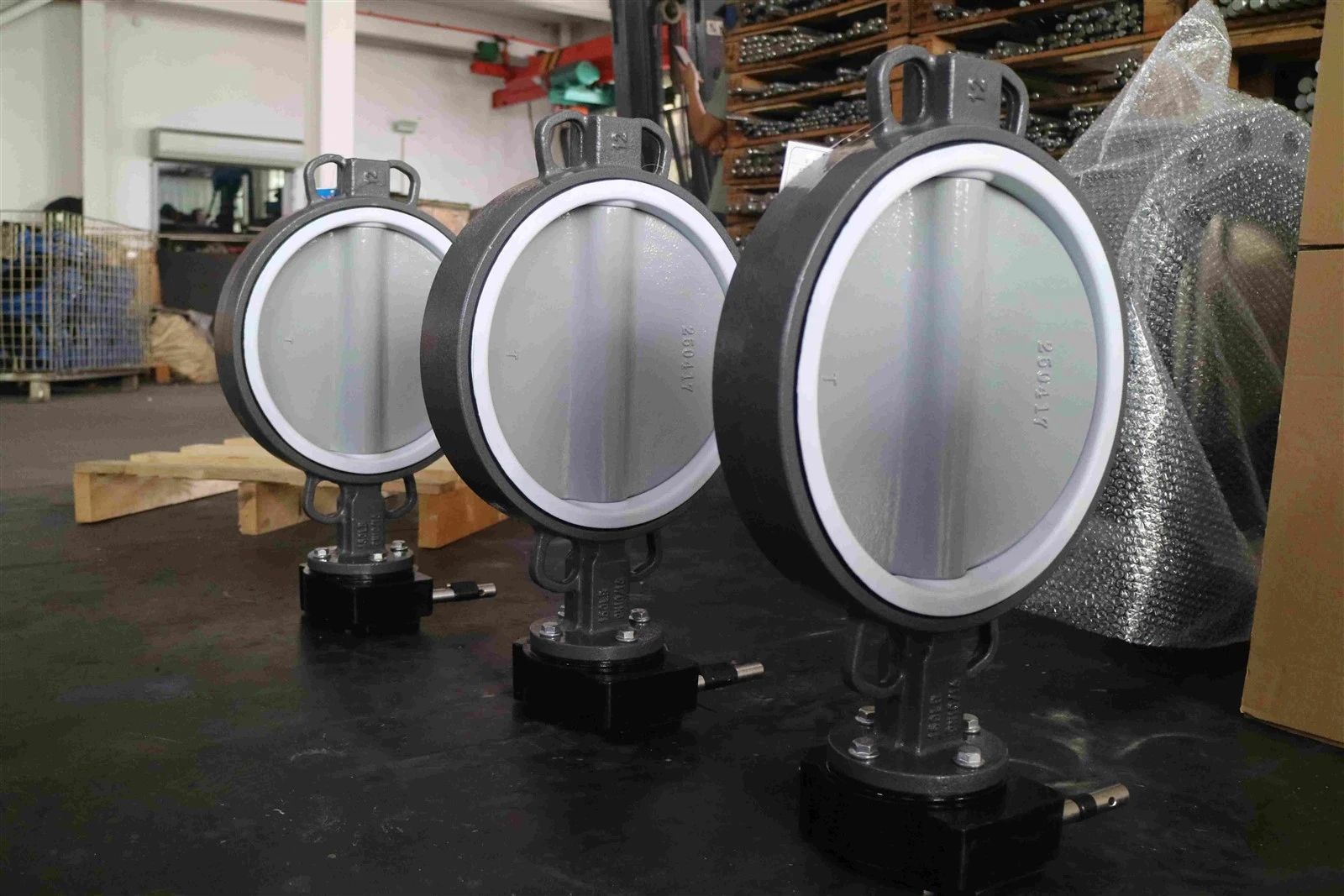

The valve plate is made of nylon material, which is lighter in weight than metal valve plates of the same specification. The resistance of the turbine drive is smaller, and after multiple opening and closing tests, it was found that the wear between components is small. The valve seat of the PTFE rubber sleeve and the valve plate of nylon form a low friction combination, and the PTFE material is resistant to high temperatures of 120 ℃, making it suitable for use in hot water circulation and steam pipelines with lower leakage rates.
Compare With Other Products
Compared to all metal butterfly valves, all metal valve plates are heavier and may experience some wear during the opening and closing process. But the nylon valve plate of this valve paired with PTFE valve seat is quieter, suitable for scenarios that require quietness. In addition, nylon valve plates have self-lubricating properties, reducing the frequency of adding lubricating oil.
Compared with the ethylene propylene valve seat butterfly valve, the temperature resistance of the ethylene propylene valve seat can only reach 80℃. If the temperature is too high, it will quickly age. In scenarios containing corrosive media, PTFE has high corrosion resistance and can reduce the risk of leakage, making it suitable for use in the chemical industry.
Compared with flange butterfly valves, flange butterfly valves require matching flanges, which takes up more space during installation than wafer butterfly valves. On the contrary, the butterfly valve can be directly installed on the pipeline to improve construction efficiency.
|
Nominal diameter DN |
Size (mm) |
Weight (kg) |
||||||||||||||
|
A |
B |
C |
D |
L |
H |
D1 |
N-Ø |
K |
E |
n1-Ø1 |
Ø2 |
G |
D2-M |
|||
|
(MM) |
(inch) |
D7A1/37A1/67A1/97A1X-1.0/1.6 |
||||||||||||||
|
50 |
2" |
161 |
80 |
42 |
52.9 |
32 |
84.84 |
120 |
4-23 |
77 |
57.15 |
4-6.7 |
12.6 |
118 |
- |
2.5 |
|
65 |
2.5" |
175 |
89 |
44.7 |
64.5 |
32 |
96.2 |
136.2 |
4-26.5 |
77 |
57.15 |
4-6.7 |
12.6 |
137 |
- |
3.2 |
|
80 |
3" |
181 |
95 |
45.2 |
78.8 |
32 |
61.23 |
160 |
8-18 |
77 |
57.15 |
4-6.7 |
12.6 |
143 |
- |
3.6 |
|
100 |
4" |
200 |
114 |
52.1 |
104 |
32 |
70.8 |
185 |
4-24.5 |
92 |
69.85 |
4-10.3 |
15.77 |
156 |
- |
4.9 |
|
125 |
5" |
213 |
127 |
54.4 |
123.3 |
32 |
82.28 |
215 |
4-23 |
92 |
69.85 |
4-10.3 |
18.92 |
190 |
- |
7 |
|
150 |
6" |
226 |
139 |
55.8 |
155.6 |
32 |
91.08 |
238 |
4-25 |
92 |
69.85 |
4-10.3 |
18.92 |
212 |
- |
7.8 |
|
200 |
8" |
260 |
175 |
60.6 |
202.5 |
45 |
112.89/76.35 |
295 |
4-25/4-23 |
115 |
88.9 |
4-14.3 |
22.1 |
268 |
- |
13.2 |
|
250 |
10" |
292 |
203 |
65.6 |
250.5 |
45 |
92.4 |
357 |
4-29 |
115 |
88.9 |
4-14.3 |
28.45 |
325 |
- |
19.2 |
|
300 |
12" |
337 |
242 |
76.9 |
301.6 |
45 |
105.34 |
407 |
4-29 |
140 |
107.95 |
4-14.3 |
31.6 |
403 |
- |
32.5 |
|
350 |
14" |
368 |
267 |
76.5 |
333.3 |
45 |
91.11 |
467 |
4-30 |
140 |
107.95 |
4-14.3 |
31.6 |
436 |
- |
41.3 |
|
400 |
16" |
400 |
309 |
86.5 |
389.6 |
51.2/72 |
100.47/102.42 |
515/525 |
4-26/4-30 |
197 |
158.75 |
4-20.6 |
33.15 |
488 |
- |
61 |
|
450 |
18" |
422 |
328 |
105.6 |
440.51 |
51.2/72 |
88.39/91.51 |
565/585 |
4-26/4-30 |
197 |
158.75 |
4-20.6 |
38 |
539 |
- |
79 |
|
500 |
20" |
480 |
361 |
131.8 |
491.6 |
64.2/82 |
96.99/101.68 |
620/650 |
4-26/4-33 |
197 |
158.75 |
4-20.6 |
41.15 |
539 |
- |
128 |
|
600 |
24" |
562 |
459 |
152 |
592.5 |
70.2/82 |
113.42/120.46 |
725/770 |
4-30/4-36 |
276 |
215.9 |
4-22.2 |
50.65 |
816 |
- |
188 |
|
700 |
28" |
624 |
520 |
163 |
695 |
66/82 |
109.65 |
840 |
20-30/24-36 |
300 |
254 |
8-18.0 |
55/63.35 |
895 |
4-M33 |
284 |
|
800 |
32" |
672 |
591 |
188 |
794.7 |
66/82 |
124 |
950 |
24-33/24-39 |
300 |
254 |
8-18.0 |
55/63.35 |
1015 |
- |
368 |
|
900 |
36" |
720 |
656 |
203 |
864.7 |
118 |
117.57 |
1050 |
28-33 |
300 |
254 |
8-18.0 |
75 |
1115 |
4-M30 |
713 |
|
1000 |
40" |
800 |
721 |
216 |
965 |
142 |
129.89 |
1160 |
28-36 |
300 |
254 |
8-18.0 |
85 |
1230 |
4-M33 |
864 |
|
1200 |
48" |
900 |
780 |
254 |
1020 |
180 |
141.33 |
1340 |
32-39 |
300 |
254 |
8-18.0 |
95 |
1450 |
4-M36 |
1130 |
Basic Information
|
Model NO. |
D71X / D371X / D671X / D971X |
Connection Form |
Wafer |
|
Structure |
Centre Sealing |
Seal Form |
Force Sealed |
|
Valve Stem |
Normal |
Work Pressure |
0.6MPa / 1.0MPa / 1.6MPa / 2.5MPa / Class150 |
|
Working Temperature |
Normal Temperature (-40°C < T < 120°C) |
Material of Seal Surface |
Soft Sealed / Hard Sealed |
|
Valve Body |
Casting |
Standard |
API 609 |
|
Application |
Industrial Usage, Water Industrial Usage, Household Usage |
Seated Material |
EPDM, NBR, PTFE, FKM |
|
Certification |
ISO9001 |
Flow Resistance |
Low Resistance |
|
Transport Package |
Export Wooden Crate |
Specification |
DN25 - DN1600 |
|
Origin |
China |
HS Code |
8481804090 |
|
Production Capacity |
50,000 pieces/Year |
|
|
Technical Parameters
|
Size |
DN32-DN600 |
DN650-DN2000 |
|
Working pressure |
16Bar |
10Bar |
|
Shell |
24Bar |
15Bar |
|
Seal |
18Bar |
11Bar |
|
Operating Temperature |
-45°C~+150°C |
|
|
Operating Environment |
Ballast and bilge system Chemical processing Desalination plants |
|
|
Driving Method |
Hand Lever Worm Gear Electric Pneumatic |
|
Executive Standards
|
Design Standard |
EN 593, MSS SP67, API 609, BS 5155 |
|
Inspection & Test |
API 598, ISO 5208, EN 12266 |
|
End Standard |
ANSI B16.1 CL. 125LB & B16.5 CL. 150LB |
|
AS 2129 Table D & E |
|
|
BS 10 Table D & E |
|
|
DIN 2501 (PN6, PN10, PN16) |
|
|
EN 1092 (PN6, PN10, PN16) |
|
|
ISO 2531 (PN6, PN10, PN16), 7005 (PN6, PN10, PN16) |
|
|
KS B / JIS B 1511 / 2210 (5K & 10K) |
|
|
MSS SP44 CL. 150LB |
|
|
AWWA C207 |
|
|
SABS 1123 Table 1000/3 & Table 1600/3 |
|
|
Face to Face |
ISO 5752, EN 558, MSS SP67, API 609, DIN 3202 |
|
Top Flange |
ISO 5211 |
